🏗️ Reimagine Construction: The Power of Precast Concrete T-Beam Forming Machines

Introduction: Why Precast T-Beams Are the Future of Structural Engineering

In modern construction, the shift from traditional cast-in-place methods to precast components is a critical move toward greater efficiency and quality assurance. At the heart of this transformation is the Precast Concrete T-Beam Forming Machine.

T-beams—essential load-bearing elements for floors and roofs—feature a distinctive structure: a wide top flange combined with a central web (the “T” shape). This design significantly reduces the component’s self-weight while maintaining exceptional structural strength and stability.

This specialized machinery utilizes advanced automated processes, such as Slipforming or Extrusion, to continuously produce T-beams. Crucially, the process often incorporates Prestressing (tensioning high-strength steel wires) to drastically enhance the structural performance, moving production away from manual labor, boosting construction efficiency, and ensuring component consistency.

I. Unpacking the Core Working Principle of T-Beam Production

The entire T-beam manufacturing process relies on the seamless synergy between the forming machine and its supporting equipment. The workflow is completed in four primary steps:

1. Prestressing Setup: High-tensile steel strands (prestressing tendons) are stretched and secured along the long production bed. A Hydraulic Prestressing Jack is typically used to ensure the strands maintain the precise required tension.
2. Mold Formation: The Slipformer or Extruder moves uniformly along the production bed, accurately feeding the high-fluidity concrete mixture into the precision T-shaped mold, instantly shaping the T-section.
3. Vibration Compaction: An integrated high-frequency vibration system compacts the concrete, eliminating internal air pockets and ensuring a uniform, void-free density throughout the beam body.
4. Curing and Cutting: After formation, the continuous beam undergoes standard curing (to achieve required strength). It is then cut into the specific lengths required by the project using high-speed diamond blades, ready for immediate delivery to the construction site.

II. Types of T-Beams and Corresponding Machinery

T-beams and their forming machines are primarily categorized based on the production process and application:

Product Type	Core Application & Feature	Machine Type
Prestressed Concrete T-Beam	Primary load-bearing for roofs/floors. Offers superior load capacity via steel wire tension, ideal for large-span structures.	Slipform Forming Machine
T-Purlins (Poutrelles)	Specific support components for roofing. Offers high formation accuracy, suitable for standardized, high-volume purlin production.	Extrusion T-Beam Machine
Various T-Beams	Integrated concrete mixing, extrusion, and forming. Streamlined process, capable of rapid, efficient production of diverse T-beam specifications to meet various architectural needs.	Precast T-Beam Forming Machine

III. The Unbeatable Advantages of Automated T-Beam Production

Compared to traditional on-site formwork casting, machine-produced precast T-beams offer four essential advantages that drive project success:

✅ High Efficiency & Speed: The continuous, automated production model is vastly quicker than conventional casting, drastically shortening the component supply cycle.
✅ Customization & Flexibility: Machine parameters can be flexibly adjusted to produce T-beams of varying thicknesses, widths, and spans, catering to diverse architectural designs.
✅ Superior Strength: Prestressing treatment gives the beams exceptional load-bearing capacity, making them structurally stable for large-span and heavy-load applications.
✅ Consistent Quality (Low Dependency): High automation reduces reliance on manual labor, eliminating quality fluctuations caused by human error and ensuring every single beam meets stringent quality standards.

IV. Key Innovation: Revolutionizing the Beam-and-Slab Flooring System

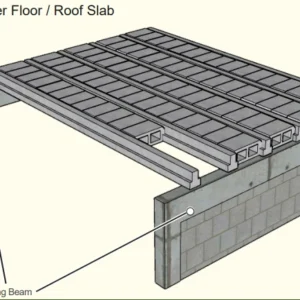

T-beams produced by this advanced machinery are frequently paired with slabs (produced by Precast Slab Machines) in Beam-and-Slab Flooring Systems. This is a breakthrough solution for suspended concrete flooring.

1. Core Advantages of Beam-and-Slab Systems-Precast Concrete T-Beam Machine

Traditional ground-supported concrete slabs (common in regions like Kenya, Africa) suffer from major drawbacks: they require extensive sub-base preparation and are vulnerable to ground movement and uneven terrain. The Beam-and-Slab system is fundamentally different:

Non-Ground Reliance: It is supported by the building’s perimeter and interior load-bearing walls, transferring the load uniformly to the foundation, independent of the ground below.
Modular & Fast Assembly: It uses a modular assembly of Precast T-Beams + Lightweight Concrete Blocks. This eliminates the need for wet concrete pouring and heavy formwork on-site, saving significant construction time and labor costs, as well as the long curing periods.
Superior Stability: The self-supporting structural design maintains excellent stability, even on uneven or geologically unstable terrain, making it adaptable to complex construction scenarios.

2. Ideal Applications

With its lightweight, high-strength, and easy-to-install characteristics, the Beam-and-Slab system is widely used in multi-story residential buildings, commercial complexes, and industrial plants, particularly in projects where foundation conditions are challenging or fast construction is paramount.

V. Choose Your Partner: Finding a Reliable T-Beam Forming Machine Supplier

Selecting a high-performance Precast Concrete T-Beam Forming Machine is crucial to guaranteeing both component quality and production efficiency.

Henan KeLai Industrial Co., Ltd. is a globally recognized supplier of precast machinery from China. Their T-Beam Forming Machines are known for their exceptional stability, high efficiency, and customization capabilities, meeting the demands of various scale construction projects. We are a preferred partner for construction enterprises worldwide seeking reliable, long-term solutions.

Contact us today to request technical specifications, pricing, or a quotation for your upcoming project.
